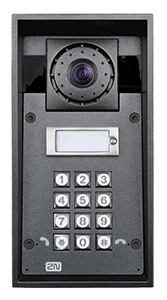

Helios IP Force

Power supply



802.3af (PoE) 48 V / 380 mA DC

or

Adaptor 230 V10%,
50/60 Hz / 12V DC
DC power supply 12 V / 2A DC



VoIP



Signalization
SIP

Number of voice channels
2

Audio Codecs
G.711, G.729

Video Codecs
H.264, 64 – 2048 kbit/s
H.263
H.263+



Interfaces



Ethernet
Connector RJ-45
Ethernet speed 10/100 BASE-T

Reley outputs
Maximal voltage 30 V DC
Maximal current 1 A DC
Active output
9V – 13V DC/700mA



Audio & Video



Audio
2 integrated microphones
10W D-Class amplifier
Fullduplex (AEC)

Video
Camera 640 (H) x 480 (V)
View angle 135° (H), 109° (V)
IR Night Vision

HD Video
Camera 1280px (H) x 960px (V)
View angle 135° (H) x 109° (V)



Other



Dimensions
217x109x83 mm (H x W x D)
242x136x83 mm (H x W x D) with a frame

Weight
max. 2000 g

Operating temperatures
from –40 to +55 ºC

Cover level
IP65, selected models IP69K
