SIP Speaker

2N® SIP Speaker – wall-mounted with fitting

Audio parameters

Output:
8W PoE / 12W 12V
Sound pressure:
99dB (SPLmax)
Impedance:
8 Ohm
Frequency range:
75Hz – 20KHz
Harmonic distortion:
0.05 % @ 1 kHz
Signal-to-noise ratio:
91 dB
Audio codecs:
G.711 (PCMA, PCMU), G.729 (Annex A, B), G.722, L16/16kHz

Mechanical properties

Dimensions (h/w/d):
250 x 176 x 143mm
Weight:
2.3kg
Colour:
Black/White

Power supply

External power supply:
12V DC / 2A
Power over Ethernet:
PoE IEEE 802.3af

LAN connection

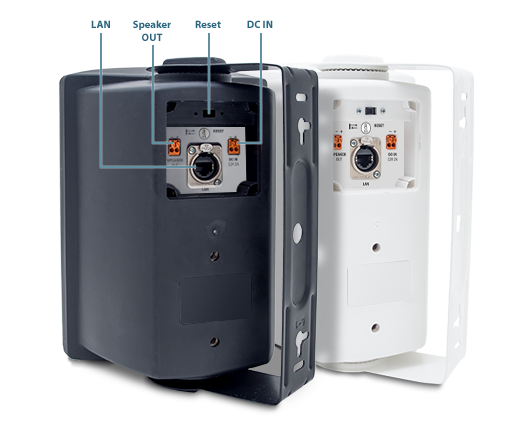

RJ-45 connector on rear panel, 10/100BASE-TX with Auto-MDIX
