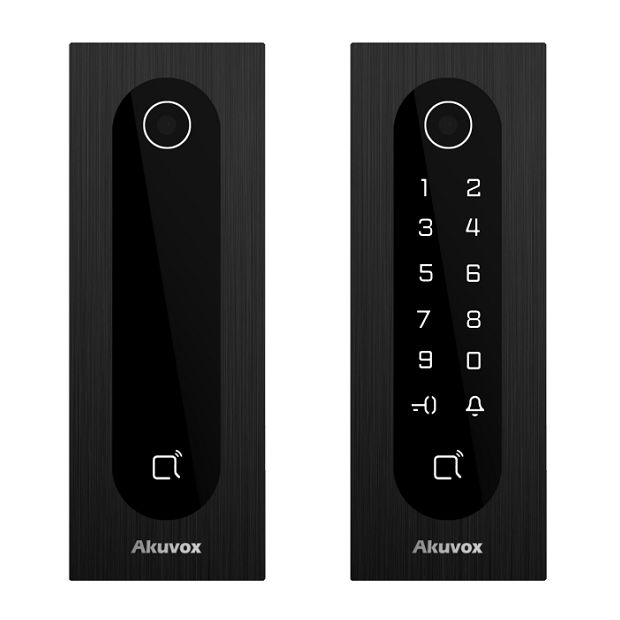

Akuvox A08 Slim Access Control Reader

The new Akuvox A08 mullion-style access control reader is ideal for both residential and office controlled access applications; the narrow, sleek design makes it ideal for locations with limited spaces – particularly doors frames.

The Akuvox A08 is available with a variety of authentication methods:

  • RFID
  • NFC smartphone authentication
  • QR Code Scanning for ‘temporary virtual keys’
  • Bluetooth smartphone authentication
  • Pin Code Keypad

This latest access control unit also supports dual authentication, providing even greater levels of secure identity verification.

The Akuvox A08 at a glance:

  • Slim​ format housing – ideal for limited space installation locatrions such as door frames / door mullions
  • Aluminum body​
  • Multiple access control authentication (RFID, NFC, Bluetooth, PIN code)​
  • QR code scanning​ for ‘temporary key’ access
  • 1 port interface for Relay out​
  • Wiegand (W26/W34/W58) protocol​
  • BLE 5.0​
  • IK07 & IP65 for outdoor / high impact locations


Front shell material Surface tempered glass/shell aluminum panel 5052
Back shell material PC
IP Rating IP65
IK Rating IK07
Flash 128MB
Network Port 1RJ45, 10/100Mbps adaptive
Power Input 12V/1A DC
Power Output 12V/ max 500mA
Camera Angle FOV:77.1°
Power Consumption Not higher than 12W
Operating temperature -20~+55 degrees Celsius
Storage temperature -30~+70 degrees Celsius
Working Humidity 10%~95%
Dimensions 140 (H) x 50 (W) x 26.7 (D) mm
Weight (Net) 0.80kg
Weight (Gross) 0.80kg
