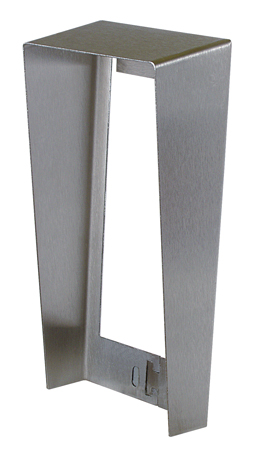

Rain Covers and Boxes

All our rain covers and flush boxes offer wider protection from the weather and are manufactured in same 904 Grade Brushed Stainless Steel as our Door Phones. They are made from Marine Grade 316 Stainless Steel and are standard for both Helios Analogue and Helios IP. Click on the relevant link to download.

Part Numbers

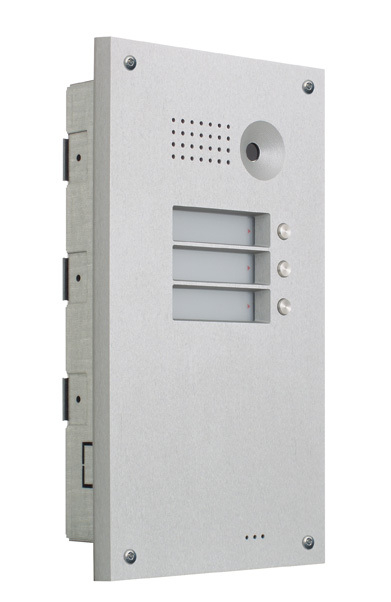

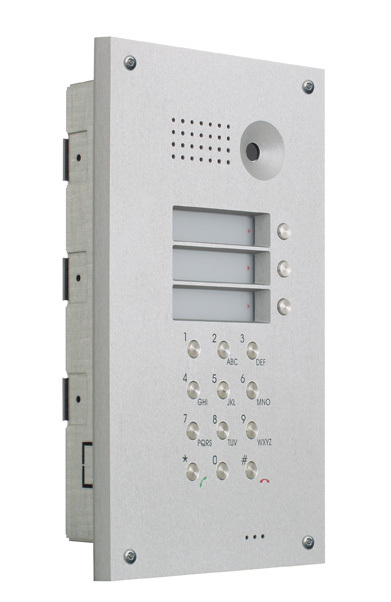

Anti-vandal Panels for 3 Button Models

Our Anti-vandal Panels offer increased protection against vandals and is custom manufactured to fit our 3 Button Helios Analogue or Helios IP with or without keypad. This panel is made from heavy diecast aluminum and comes complete with mounting hardware and a flush mount box. It can only be flush mounted into a wall or a custom built post or bollard. Click on the relevant link to download.

This has been replaced by Helios IP Force

RFID Card Reader System

A new Card Reader system has been developed for our Helios IP. Currently it has been incorperated into the software and features a simple + and - card system for adding and deleting users. It is HID compatible with time scheduling functions for controlling it's 2 own on board relays. It also supports Serial and Wiengand outputs. Future firmware revisions will have a users event log. Click on the relevant link to download.

Card Reader

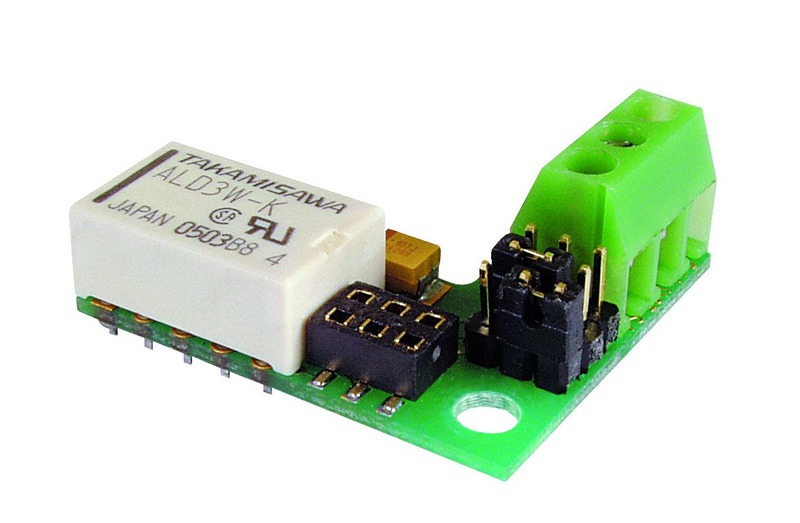

Additional Switch

The additional switch is the second relay, mounted inside the Helios Door Phone, needed for another entrance, Access Control, Video Camera or light switch. It can be synchronised with the onboard relay, has a delay function for gaining access to two entrances one after the other and the contacts can be configured for N/O or N/C. Click on the relevant link to download.

Helios PSTN    Helios IP
